IDTQS32257 - QUICKSWITCH PRODUCTS HIGH-SPEED CMOS QUICKSWITCH QUAD 2:MUX/DEMUX

IDTQS32257 Description

IDTQS32257 HIGH-SPEED CMOS QUICKSWITCH QUAD 2:1 MUX/DEMUX INDUSTRIAL TEMPERATURE RANGE QUICKSWITCH® PRODUCTS HIGH-SPEED CMOS QUICKSWITCH QUAD 2:MUX/.
Enhanced N channel FET with no inherent diode to Vcc 5Ω bidirectional switches connect inputs to outputs Pin compatible with the 74F257, 74FCT257, a.

IDTQS32257 Applications

* Logic replacement (data processing) Video, audio, graphics switching, muxing Hot-swapping, hot-docking Voltage translation (5V to 3.3V) Bus funneling FUNCTIONAL BLOCK DIAGRAM S E I0A YA I1A I0B YB I1B I0C YC I1C I0D YD I1D The IDT logo is a regis

📥 Download Datasheet

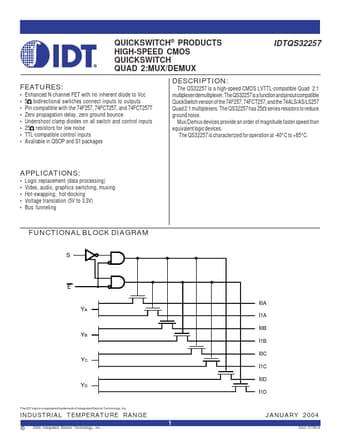

Preview of IDTQS32257 PDF
