IDTQS32X861 - HIGH-SPEED CMOS 20-BIT BUS SWITCH

Product Overview

Integrated Device Technology

Datasheet Details

Part number	IDTQS32X861
Manufacturer	Integrated Device Technology
File Size	209.82 KB
Description	HIGH-SPEED CMOS 20-BIT BUS SWITCH
Datasheet	IDTQS32X861 Datasheet

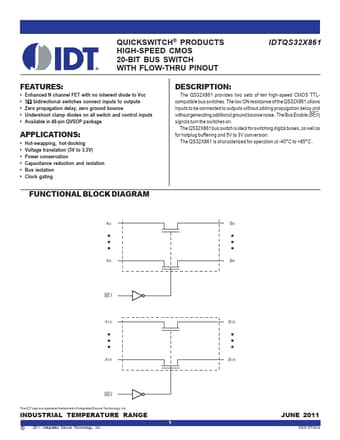

Additional preview pages of the IDTQS32X861 datasheet.

Product details

Description

Enhanced N channel FET with no inherent diode to Vcc 5Ω bidirectional switches connect inputs to outputs Zero propagation delay, zero ground bounce Undershoot clamp diodes on all switch and control inputs Available in 48-pin QVSOP package www.DataSheet4U.com APPLICATIONS: Hot-swapping, hot-docking Voltage translation (5V to 3.3V) Power conservation Capacitance reduction and isolation Bus isolation Clock gating The QS32X861 provide

Features

IDTQS32X861.
