IDTQS32X245 - HIGH-SPEED CMOS QUICKSWITCH DOUBLE-WIDTH BUS SWITCH

Product Overview

📥 Download Datasheet

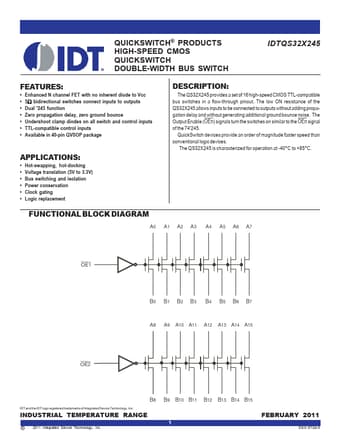

Datasheet preview – IDTQS32X245

Datasheet Details

Part number IDTQS32X245
Manufacturer Integrated Device
File Size 207.09 KB
Description HIGH-SPEED CMOS QUICKSWITCH DOUBLE-WIDTH BUS SWITCH
Datasheet download datasheet IDTQS32X245 Datasheet
Additional preview pages of the IDTQS32X245 datasheet.

Product details

Description

Enhanced N channel FET with no inherent diode to Vcc 5Ω bidirectional switches connect inputs to outputs Dual '245 function Zero propagation delay, zero ground bounce Undershoot clamp diodes on all switch and control inputs TTL-compatible control inputs Available in 40-pin QVSOP package The QS32X245 provides a set of 16 high-speed CMOS TTL-compatible bus switches in a flow-through pinout.The low ON resistance of the QS32X245 allows inputs to be connected to outputs without adding propagation

Features
