IDTQS32390 Datasheet - Integrated Device Technology

IDTQS32390 HIGH-SPEED CMOS QUICKSWITCH 16:8 MULTIPLEXER

The QS32390 provides a 16:8 multiplexer logic switch. The QS32390 has an internal 25Ω resistor to reduce reflection noise in high-speed applications. The enable inputs connect one of two inputs to the common I/O pin, respectively. The multiplexer function can be used to select and route logic signa.

IDTQS32390 Features

* Enhanced N channel FET with no inherent diode to Vcc

* 16:8 multiplexer function with zero delay

* 5Ω bidirectional switches connect inputs to outputs

* Zero propagation delay, zero ground bounce

* Undershoot clamp diodes on all switch and control inputs

IDTQS32390-IntegratedDeviceTechnology.pdf

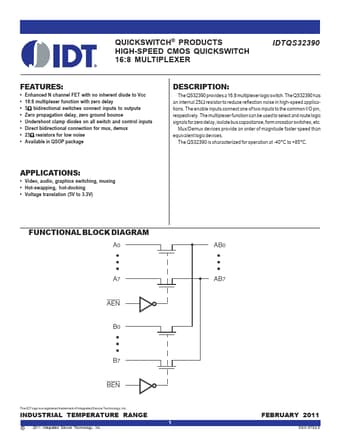

Preview of IDTQS32390 PDF
IDTQS32390 Datasheet Preview Page 2 IDTQS32390 Datasheet Preview Page 3

Datasheet Details

Part number:

IDTQS32390

Manufacturer:

Integrated Device Technology

File Size:

209.93 KB

Description:

High-speed cmos quickswitch 16:8 multiplexer.
