IDTQS32XL384 - QUICKSWITCH PRODUCTS HIGH-SPEED CMOS 20-BIT BUS SWITCH

IDTQS32XL384 Description

IDTQSIDTQS32XL384 HIGH-SPEED CMOS 20-BIT BUS SWITCH INDUSTRIAL TEMPERATURE RANGE QUICKSWITCH® PRODUCTS HIGH-SPEED CMOS 20-BIT BUS SWITCH .
IDTQS32XL384. Enhanced N channel FET with no inherent diode to VCC 5Ω bidirec.

IDTQS32XL384 Applications

* The QS32XL384 provides a set of twenty high-speed CMOS TTLcompatible bus switches. The low ON resistance of the QS32XL384 allows inputs to be connected to outputs without adding propagation delay and without generating

📥 Download Datasheet

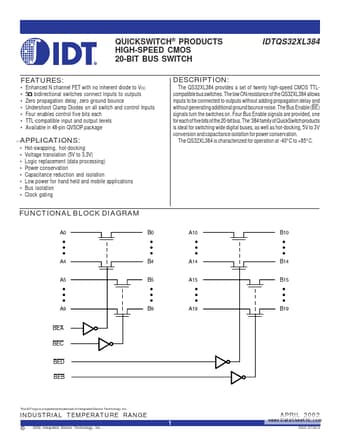

Preview of IDTQS32XL384 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IDTQS32XL384
Manufacturer
Integrated Device Technology
File Size
78.29 KB
Datasheet
IDTQS32XL384_IntegratedDeviceTechnology.pdf
Description
QUICKSWITCH PRODUCTS HIGH-SPEED CMOS 20-BIT BUS SWITCH
