IS42VS16100D Datasheet - Integrated Silicon Solution

512K Words x 16 Bits x 2 Banks (16-MBIT) SYNCHRONOUS DYNAMIC RAM

IS42VS16100D Features

* Clock frequency: 135, 100, 83 MHz

* Power Supply: 1.8V

* Fully synchronous; all signals referenced to a positive clock edge

* Two banks can be operated simultaneously and independently

* Dual internal bank controlled by A11 (bank select)

* Programmab

IS42VS16100D General Description

ISSI’s 16Mb Synchronous DRAM IS42VS16100D is organized as a 524,288-word x 16-bit x 2-bank for improved performance. The synchronous DRAMs achieve high-speed data transfer using pipeline architecture. All inputs and outputs signals refer to the rising edge of the clock input. ® www.DataSheet4U.c .

IS42VS16100D Datasheet (780.09 KB)

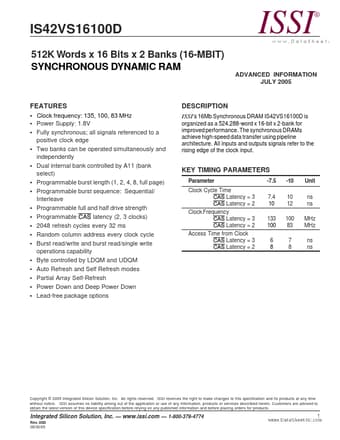

Preview of IS42VS16100D PDF

Datasheet Details

Part number:

IS42VS16100D

Manufacturer:

Integrated Silicon Solution

File Size:

780.09 KB

Description:

512k words x 16 bits x 2 banks (16-mbit) synchronous dynamic ram.
