IS45VS83200D, IS42VS83200D Datasheet - Integrated Silicon Solution

IS45VS83200D 256-MBIT SYNCHRONOUS DRAM

A0-A12 Row Address Input A0-A9 Column Address Input BA0, BA1 Bank Select Address DQ0 to DQ7 Data I/O CLK System Clock Input CKE Clock Enable CS Chip Select RAS Row Address Strobe Command CAS Column Address Strobe Command WE DQM Vdd Vss Vddq Vssq NC Writ.

IS45VS83200D Features

* Clock frequency: 133, 125 MHz

* Fully synchronous; all signals referenced to a positive clock edge

* Internal bank for hiding row access/precharge

* Single Power supply: 1.8V + 0.1V

* LVCMOS interface

* Programmable burst length

* (1,

IS42VS83200D-IntegratedSiliconSolution.pdf

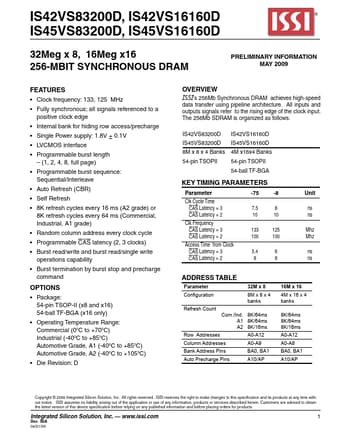

IS45VS83200D Datasheet Preview — This datasheet PDF includes multiple part numbers: IS45VS83200D, IS42VS83200D. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

IS45VS83200D, IS42VS83200D

Manufacturer:

Integrated Silicon Solution

File Size:

860.56 KB

Description:

256-mbit synchronous dram.

Note:

This datasheet PDF includes multiple part numbers: IS45VS83200D, IS42VS83200D.
Please refer to the document for exact specifications by model.
