IS45VS16400L, IS42VS16400L Datasheet - Integrated Silicon Solution

IS45VS16400L 1 Meg Bits x 16 Bits x 4 Banks (64-MBIT) SYNCHRONOUS DYNAMIC RAM

The 64Mb SDRAM is a high speed CMOS, dynamic random-access memory designed to operate in 1.8V memory systems containing 67,108,864 bits. InterNally configured as a quad-bank DRAM with a synchronous interface. Each 16,777,216-bit bank is organized as 4,096 rows by 256 columns by 16 bits. The 64Mb S.

IS45VS16400L Features

* Clock frequency: 133 MHz

* Fully synchronous; all signals referenced to a positive clock edge

* Internal bank for hiding row access/precharge

* Single 1.8V power supply

* LVTTL interface

* Programmable burst length

* (1, 2, 4, 8, full

IS42VS16400L-IntegratedSiliconSolution.pdf

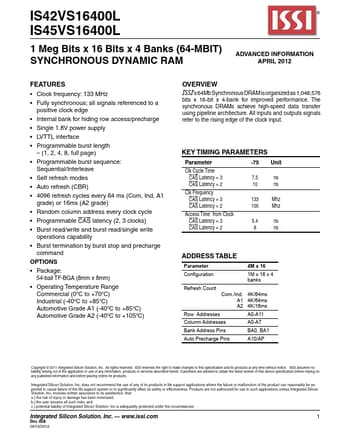

IS45VS16400L Datasheet Preview — This datasheet PDF includes multiple part numbers: IS45VS16400L, IS42VS16400L. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

IS45VS16400L, IS42VS16400L

Manufacturer:

Integrated Silicon Solution

File Size:

620.65 KB

Description:

1 meg bits x 16 bits x 4 banks (64-mbit) synchronous dynamic ram.

Note:

This datasheet PDF includes multiple part numbers: IS45VS16400L, IS42VS16400L.
Please refer to the document for exact specifications by model.
