IS49NLS18160, IS49NLS93200 Datasheet - Integrated Silicon Solution

IS49NLS18160 Separate I/O RLDRAM 2 Memory

1.1 288Mb (32Mx9) Separate I/O BGA Ball-out (Top View) 123 4 5678 9 10 11 12 A VREF B VDD VSS DNU3 VEXT DNU3 VSS VSSQ VSS VEXT TMS TCK VSSQ Q0 D0 VDD C VTT DNU3 DNU3 VDDQ VDDQ Q1 D1 VTT D A221 DNU3 DNU3 VSSQ VSSQ QK0# QK0 VSS E A211 DNU3 DNU3 VDDQ VDDQ Q2 D2 A20 .

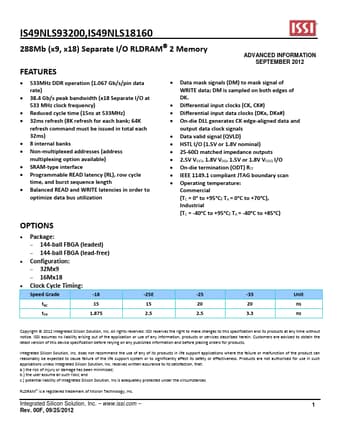

IS49NLS18160 Features

* ADVANCED INFORMATION SEPTEMBER 2012

* 533MHz DDR operation (1.067 Gb/s/pin data rate)

* 38.4 Gb/s peak bandwidth (x18 Separate I/O at 533 MHz clock frequency)

* Reduced cycle time (15ns at 533MHz)

* 32ms refresh (8K refresh for each bank; 64K refresh command must be

IS49NLS93200-IntegratedSiliconSolution.pdf

IS49NLS18160 Datasheet Preview — This datasheet PDF includes multiple part numbers: IS49NLS18160, IS49NLS93200. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

IS49NLS18160, IS49NLS93200

Manufacturer:

Integrated Silicon Solution

File Size:

546.23 KB

Description:

Separate i/o rldram 2 memory.

Note:

This datasheet PDF includes multiple part numbers: IS49NLS18160, IS49NLS93200.
Please refer to the document for exact specifications by model.
