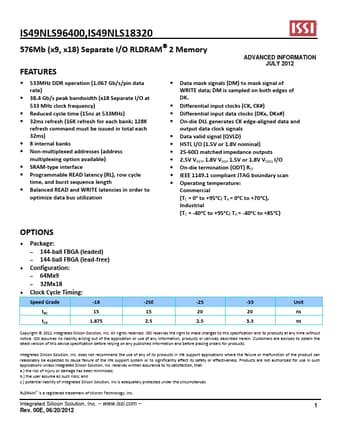

IS49NLS18320, IS49NLS96400 Datasheet - Integrated Silicon Solution

IS49NLS18320 Separate I/O RLDRAM 2 Memory

1.1 576Mb (64Mx9) Separate I/O BGA Ball‐out (Top View) 1 2 3 4 5678 9 10 11 12 A VREF B VDD C VTT D A221 E A21 F A5 VSS DNU3 DNU3 DNU3 DNU3 DNU3 VEXT DNU3 DNU3 DNU3 DNU3 DNU3 VSS VSSQ VDDQ VSSQ VDDQ VSSQ VSS VEXT TMS TCK VSSQ Q0 D0 VDD VDDQ Q1 D1 VTT VSSQ QK0# QK0 VSS VDDQ .

IS49NLS18320 Features

* ADVANCED INFORMATION JULY 2012

* 533MHz DDR operation (1.067 Gb/s/pin data rate)

* 38.4 Gb/s peak bandwidth (x18 Separate I/O at 533 MHz clock frequency)

* Reduced cycle time (15ns at 533MHz)

* 32ms refresh (16K refresh for each bank; 128K refresh command must be issued in t

IS49NLS96400-IntegratedSiliconSolution.pdf

IS49NLS18320 Datasheet Preview — This datasheet PDF includes multiple part numbers: IS49NLS18320, IS49NLS96400. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

IS49NLS18320, IS49NLS96400

Manufacturer:

Integrated Silicon Solution

File Size:

578.04 KB

Description:

Separate i/o rldram 2 memory.

Note:

This datasheet PDF includes multiple part numbers: IS49NLS18320, IS49NLS96400.
Please refer to the document for exact specifications by model.
