IS49NLS93200 - Separate I/O RLDRAM 2 Memory
1.1 288Mb (32Mx9) Separate I/O BGA Ball-out (Top View) 123 4 5678 9 10 11 12 A VREF B VDD VSS DNU3 VEXT DNU3 VSS VSSQ VSS VEXT TMS TCK VSSQ Q0 D0 VDD C VTT DNU3 DNU3 VDDQ VDDQ Q1 D1 VTT D A221 DNU3 DNU3 VSSQ VSSQ QK0# QK0 VSS E A211 DNU3 DNU3 VDDQ VDDQ Q2 D2 A20

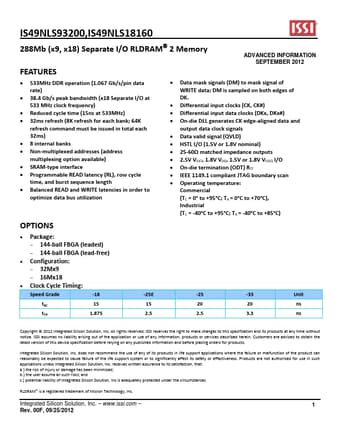

IS49NLS93200 Features
* ADVANCED INFORMATION SEPTEMBER 2012
* 533MHz DDR operation (1.067 Gb/s/pin data rate)
* 38.4 Gb/s peak bandwidth (x18 Separate I/O at 533 MHz clock frequency)
* Reduced cycle time (15ns at 533MHz)
* 32ms refresh (8K refresh for each bank; 64K refresh command must be
