N0014EU

Process Geometry

InterFET

Download Datasheet (399.36 KB)

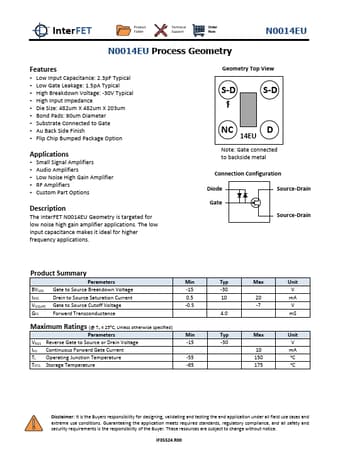

N0014EU Datasheet Preview — Preview of N0014EU Datasheet

Datasheet Details

Part number:

N0014EU

Manufacturer:

InterFET

File Size:

399.36 KB

Description:

Process geometry.
InterFET Product Folder Technical Support Order Now N0014EU N0014EU Process Geometry Features .
The InterFET N0014EU Geometry is targeted for low noise high gain amplifier applications. The low in.

✔ N0014EU Features

Low Input Capacitance: 2.3pF Typical
Low Gate Leakage: 1.5pA Typical
High Breakdown Voltage: -30V Typical
High Input Impedance
Die Size: 482um X 482um X 203um

✔ N0014EU Application

Small Signal Amplifiers
Audio Amplifiers
Low Noise High Gain Amplifier
RF Amplifiers
Custom Part O
