IRF460 Datasheet, Mosfet, International Rectifier

IRF460 Features

  • Mosfet n n n n n Repetitive Avalanche Ratings Dynamic dv/dt Rating Hermetically Sealed Simple Drive Requirements Ease of Paralleling Absolute Maximum Ratings Parameter ID @ VGS = 0V, TC = 2

PDF File Details

Part number:

IRF460

Manufacturer:

International Rectifier

File Size:

140.31kb

Download:

📄 Datasheet

Description:

N-channel power mosfet.

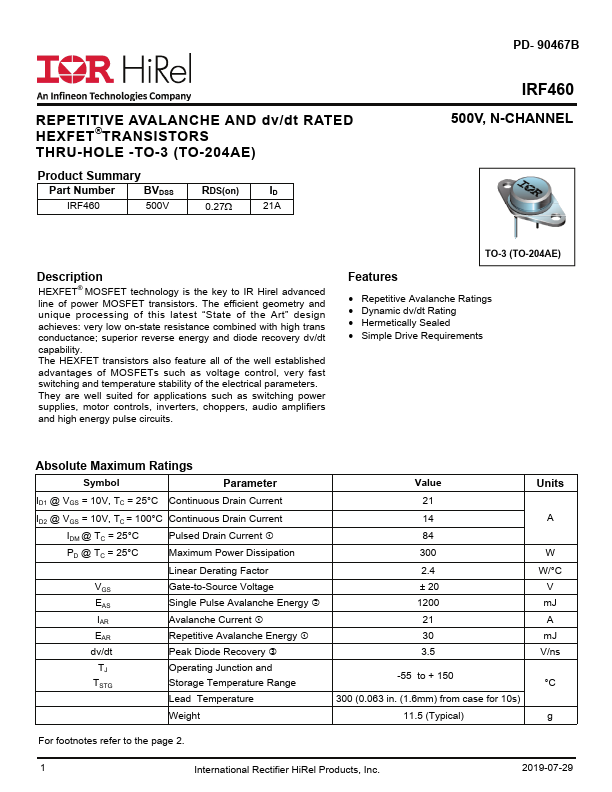

Datasheet Preview: IRF460 📥 Download PDF (140.31kb)

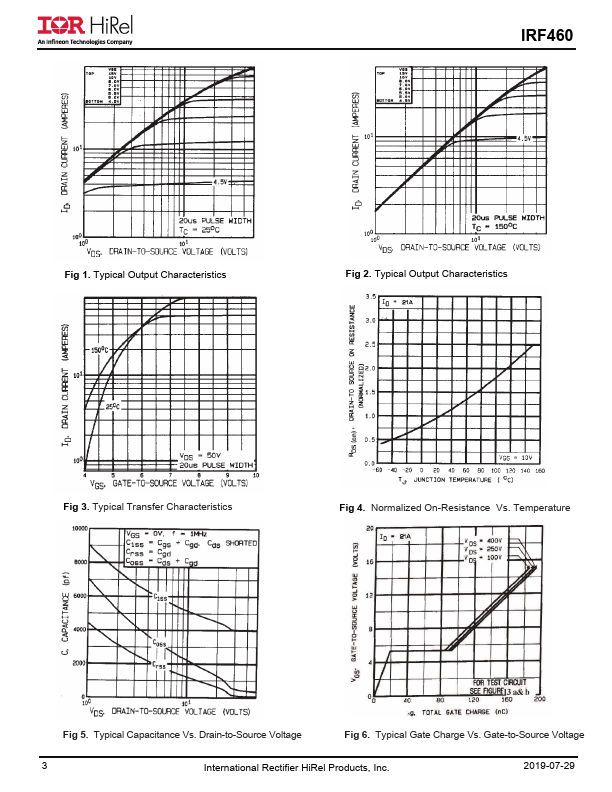

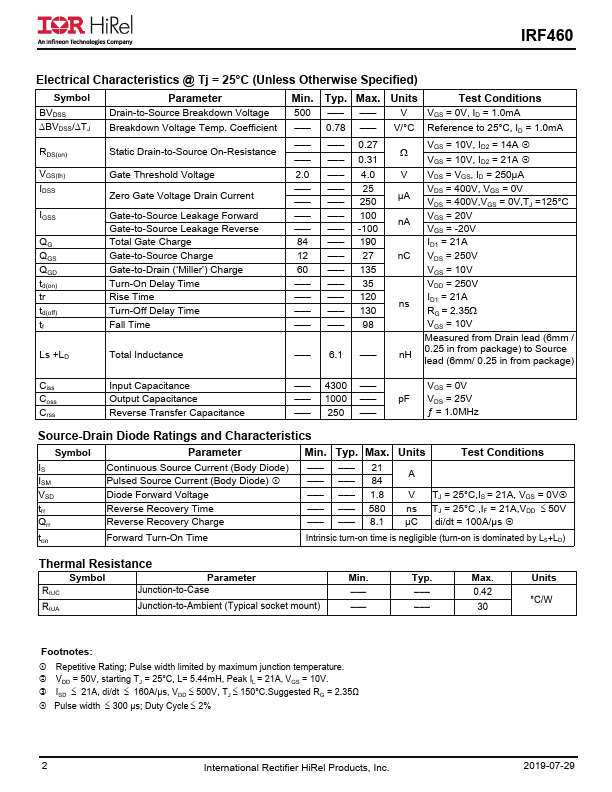

Page 2 of IRF460 Page 3 of IRF460

IRF460 Application

  • Applications such as switching power supplies, motor controls, inverters, choppers, audio amplifiers and high energy pulse circuits. TO-3 Features
