IRFB20N50KPBF, HEXFET Power MOSFET

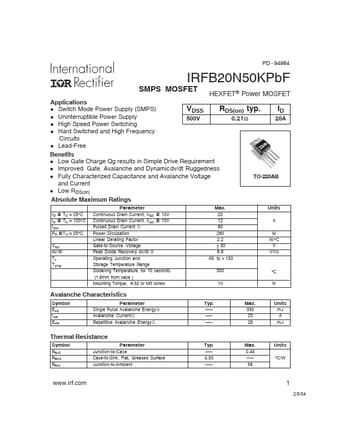

www.DataSheet.co.kr PD - 94984 SMPS MOSFET IRFB20N50KPbF HEXFET® Power MOSFET Applications VDSS RDS(on) typ.ID l Switch Mode Power Supply (SMPS) .

datasheet Preview Page 1 from Datasheet4u.com

IRFB20N50KPBF_InternationalRectifier.pdf

IRFB20N50KPBF Datasheet Preview — Preview of IRFB20N50KPBF PDF

Datasheet Details

Part number:

IRFB20N50KPBF

Manufacturer:

International Rectifier

File Size:

242.45 KB

Description:

HEXFET Power MOSFET

Features

* CE 3- EMITTER 4 - DRAIN LEAD ASSIGNMENTS HEXFET 14.09 (.555) 13.47 (.530) 4- DRAIN 4.06 (.160) 3.55 (.140) 4- COLLECTOR 3X 3X 1.40 (.055) 1.15 (.045) 0.93 (.037) 0.69 (.027) M B A M 3X 0.55 (.022) 0.46 (.018) 0.36 (.014) 2.54 (.100) 2X NOTES: 1 DIMENSIONING & TOLERANCING PER ANSI Y14.5M,

Applications

* VDSS RDS(on) typ. ID l Switch Mode Power Supply (SMPS) l Uninterruptible Power Supply 500V 0.21 Ω 20A l High Speed Power Switching l Hard Switched and High Frequency Circuits l Lead-Free Benefits l Low Gate Charge Qg results in Simple Drive Requirement l Improved Gate, Avalanche and Dynamicdv/dt Rug
