IRFB23N15D Datasheet - International Rectifier

IRFB23N15D Power MOSFET

PD - 95535 SMPS MOSFET IRFB23N15DPbF IRFS23N15DPbF IRFSL23N15DPbF HEXFET® Power MOSFET Applications l High frequency DC-DC converters l Lead-Free VDSS RDS(on) max ID 150V 0.090Ω 23A Benefits l Low Gate-to-Drain Charge to Reduce Switching Losses l Fully Characterized Capacitance Including Effective COSS to Simplify Design, (See App. Note AN1001) l Fully Characterized Avalanche Voltage and Current TO-220AB IRFB23N15D D2Pak TO-262 IRFS23N15D IRFSL23N15D Absolute Maximum Ratings ID @ .

IRFB23N15D_InternationalRectifier.pdf

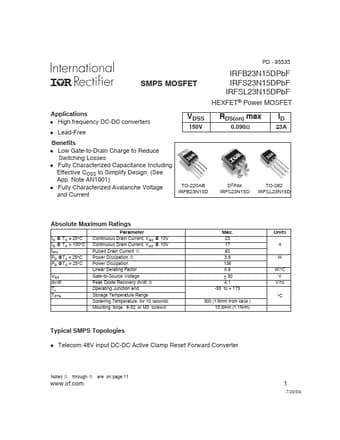

Preview of IRFB23N15D PDF
IRFB23N15D Datasheet Preview Page 2 IRFB23N15D Datasheet Preview Page 3

Datasheet Details

Part number:

IRFB23N15D

Manufacturer:

International Rectifier

File Size:

278.96 KB

Description:

Power mosfet.
