IRFB23N15 Power MOSFET

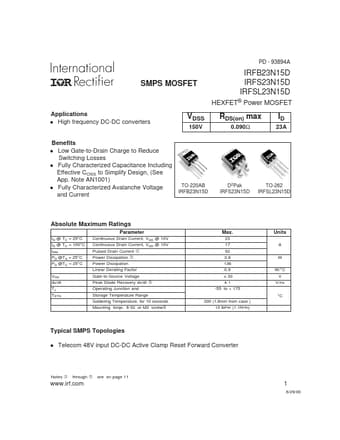

PD - 93894A SMPS MOSFET IRFB23N15D IRFS23N15D IRFSL23N15D HEXFET® Power MOSFET l Applications High frequency DC-DC converters VDSS 150V RDS(on) max 0.090Ω ID 23A Benefits Low Gate-to-Drain Charge to Reduce Switching Losses l Fully Characterized Capacitance Including Effective COSS to Simplify Design, (See App. Note AN1001) TO-220AB l Fully Characterized Avalanche Voltage IRFB23N15D and Current l D2Pak IRFS23N15D TO-262 IRFSL23N15D Absolute Maximum Ratings Parameter ID @ TC = 25°C ID @.

IRFB23N15 Features

* T S D O N O T IN C L U D E B U R R S . TO-220AB Part Marking Information E X A M P L E : T H IS IS A N IR F 1 0 1 0 W IT H A S S E M B L Y LOT C ODE 9B1M A IN T E R N A T IO N A L R E C T IF IE R LOGO ASSEMBLY LOT CODE PART NU M BER IR F 1 0 1 0 9246 9B 1M D ATE CO DE (Y Y W W ) YY = YEAR W W
