IRFBC30APBF Power MOSFET

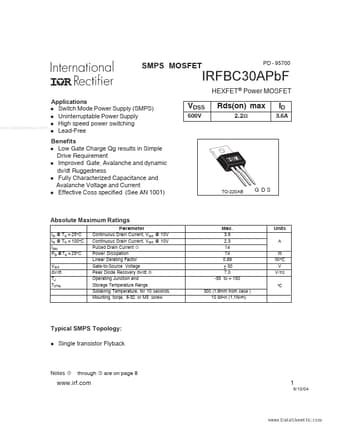

SMPS MOSFET PD - 95700 IRFBC30APbF HEXFET® Power MOSFET www.DataSheet4U.com Applications Switch Mode Power Supply (SMPS) l Uninterruptable Power Supply l High speed power switching l Lead-Free l VDSS 600V Rds(on) max 2.2Ω ID 3.6A Benefits Low Gate Charge Qg results in Simple Drive Requirement l Improved Gate, Avalanche and dynamic dv/dt Ruggedness l Fully Characterized Capacitance and Avalanche Voltage and Current l Effective Coss specified (See AN 1001) l TO-220AB G DS Absolute Maxim.

IRFBC30APBF Features

* INCH 2.92 (.115) 2.64 (.104) 3 OUTLINE CONFORMS TO JEDEC OUTLINE TO-220AB. 4 HEATSINK & LEAD MEASUREMENTS DO NOT INCLUDE BURRS. TO-220AB Part Marking Information E X AM P L E : T H I S I S A N IR F 1 0 1 0 L OT COD E 1789 AS S E MB L E D O N W W 19, 1 997 I N T H E A S S E M B L Y L I N E "C " IN
