IRFIB41N15DPbF HEXFET Power MOSFET

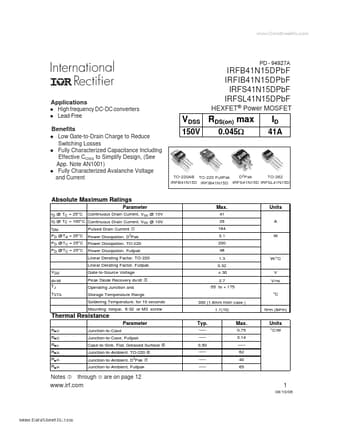

www.DataSheet4U.com PD - 94927A Applications l l IRFB41N15DPbF IRFIB41N15DPbF IRFS41N15DPbF IRFSL41N15DPbF HEXFET® Power MOSFET High frequency DC-DC converters Lead-Free VDSS RDS(on) max 150V 0.045: ID 41A Benefits l l l Low Gate-to-Drain Charge to Reduce Switching Losses Fully Characterized Capacitance Including Effective COSS to Simplify Design, (See App. Note AN1001) Fully Characterized Avalanche Voltage and Current TO-220AB TO-220 FullPak D2Pak TO-262 IRFB41N15D IRFIB41N15D IRFS41N.

IRFIB41N15DPbF Features

* 3X 1.40 (.055) 3X 1.15 (.045) 2.54 (.100) 2X NOTES: 0.93 (.037) 0.69 (.027) M B A M 3X 0.55 (.022) 0.46 (.018) 0.36 (.014) 2.92 (.115) 2.64 (.104) 1 DIMENSIONING & TOLERANCING PER ANSI Y14.5M, 1982. 2 CONTROLLING DIMENSION : INCH 3 OUTLINE CONFORMS TO JEDEC OUTLINE TO-220AB. 4 HEATSINK & LEA
