IRFIB6N60A Datasheet - International Rectifier

IRFIB6N60A - Power MOSFET

PD - 91813 SMPS MOSFET Applications l Switch Mode Power Supply ( SMPS ) l Uninterruptable Power Supply l High speed power switching l High Voltage Isolation = 2.5KVRMS† Benefits Low Gate Charge Qg results in Simple Drive Requirement l Improved Gate, Avalanche and dynamic dv/dt Ruggedness l Fully Characterized Capacitance and Avalanche Voltage and Current l IRFIB6N60A HEXFET® Power MOSFET VDSS 600V Rds(on) max 0.75W ID 5.5A TO-220 FULLPAK G DS Absolute Maximum Ratings Parameter ID @ TC = .

IRFIB6N60A Features

* i/dt £ 50A/µs, VDD £ V(BR)DSS, TJ £ 150°C † t=60s, f=60Hz WORLD HEADQUARTERS: 233 Kansas St., El Segundo, California 90245, Tel: (310) 322 3331 IR GREAT BRITAIN: Hurst Green, Oxted, Surrey RH8 9BB, UK Tel: ++ 44 1883 732020 IR CANADA: 15 Lincoln Court, Brampton, Ontario L6T3Z2, Tel: (905) 453 2200

IRFIB6N60A_InternationalRectifier.pdf

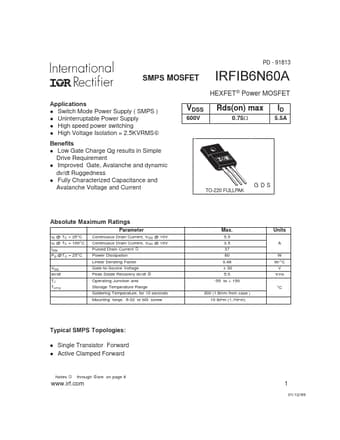

Preview of IRFIB6N60A PDF
IRFIB6N60A Datasheet Preview Page 2 IRFIB6N60A Datasheet Preview Page 3

Datasheet Details

Part number:

IRFIB6N60A

Manufacturer:

International Rectifier

File Size:

149.10 KB

Description:

Power mosfet.
