IRFIB6N60APBF Datasheet - International Rectifier

IRFIB6N60APBF Power MOSFET

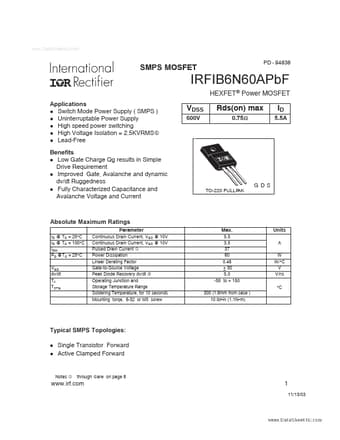

www.DataSheet4U.com SMPS MOSFET PD - 94838 IRFIB6N60APbF Rds(on) max 0.75Ω HEXFET® Power MOSFET Applications l Switch Mode Power Supply ( SMPS ) l Uninterruptable Power Supply l High speed power switching l High Voltage Isolation = 2.5KVRMS l Lead-Free Benefits l Low Gate Charge Qg results in Simple Drive Requirement l Improved Gate, Avalanche and dynamic dv/dt Ruggedness l Fully Characterized Capacitance and Avalanche Voltage and Current VDSS 600V ID 5.5A TO-220 FULLP AK G DS Absolut.

IRFIB6N60APBF Features

* .2A, di/dt ≤ 50A/µs, VDD ≤ V(BR)DSS, Data and specifications subject to change without notice. IR WORLD HEADQUARTERS: 233 Kansas St., El Segundo, California 90245, USA Tel: (310) 252-7105 TAC Fax: (310) 252-7903 Visit us at www.irf.com for sales contact information.11/03 8 www.irf.com www.DataS

IRFIB6N60APBF Datasheet (255.96 KB)
