IRFIB5N65 Power MOSFET

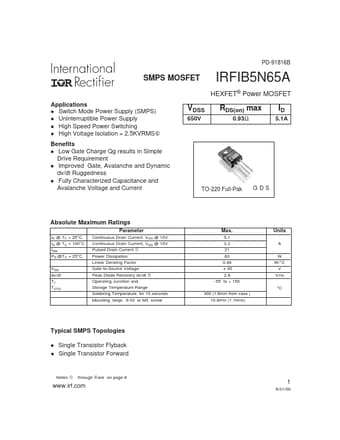

PD-91816B SMPS MOSFET IRFIB5N65A HEXFET® Power MOSFET Applications l Switch Mode Power Supply (SMPS) l Uninterruptible Power Supply l High Speed Power Switching l High Voltage Isolation = 2.5KVRMS Benefits l Low Gate Charge Qg results in Simple Drive Requirement l Improved Gate, Avalanche and Dynamic dv/dt Ruggedness l Fully Characterized Capacitance and Avalanche Voltage and Current VDSS 650V RDS(on) max 0.93Ω ID 5.1A TO-220 Full-Pak GDS Absolute Maximum Ratings Parameter ID @ TC = 25.

IRFIB5N65 Features

* Part Marking Information E X AM P LE : TH IS IS A N IR F I8 40 G W IT H AS S E M B L Y L O T C O D E E 40 1 A IN T E R N A TIO N A L R E C T IF IE R LOGO A S S EM BL Y LOT CODE PA R T NU M B E R IR F I8 4 0 G E 40 1 9 2 4 5 Notes: DATE CODE (YY W W ) YY = YE A R W W = W EEK Repetitive rating;
