IRFIB5N65APBF SMPS MOSFET

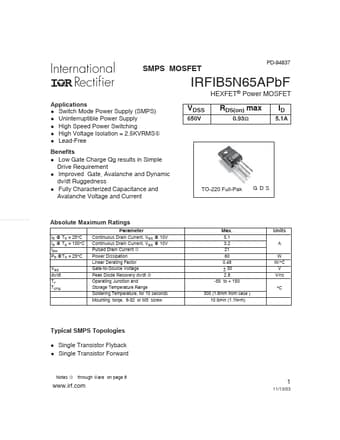

SMPS MOSFET PD-94837 IRFIB5N65APbF Applications l Switch Mode Power Supply (SMPS) l Uninterruptible Power Supply l High Speed Power Switching l High Voltage Isolation = 2.5KVRMS l Lead-Free Benefits l Low Gate Charge Qg results in Simple Drive Requirement l Improved Gate, Avalanche and Dynamic dv/dt Ruggedness l Fully Characterized Capacitance and Avalanche Voltage and Current HEXFET® Power MOSFET VDSS 650V RDS(on) max 0.93Ω ID 5.1A TO-220 Full-Pak GDS www.DataSheet4U.com Absolute Max.

IRFIB5N65APBF Features

* r>

* ISD ≤ 5.2A, di/dt ≤ 90A/µs, VDD ≤ V(BR)DSS, Data and specifications subject to change without notice. IR WORLD HEADQUARTERS: 233 Kansas St., El Segundo, California 90245, USA Tel: (310) 252-7105 TAC Fax: (310) 252-7903 Visit us at www.irf.com for sales contact information.11/03 8 www.irf.com
