IRFIB7N50A - Power MOSFET

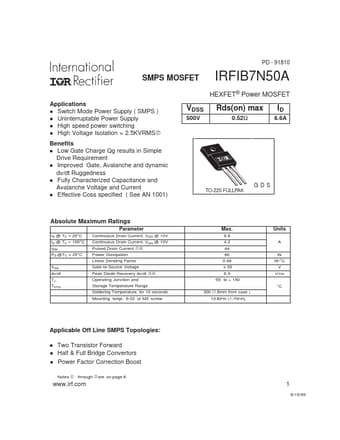

PD - 91810 SMPS MOSFET IRFIB7N50A HEXFET® Power MOSFET Applications l Switch Mode Power Supply ( SMPS ) l Uninterruptable Power Supply l High speed power switching l High Voltage Isolation = 2.5KVRMS Benefits Low Gate Charge Qg results in Simple Drive Requirement l Improved Gate, Avalanche and dynamic dv/dt Ruggedness l Fully Characterized Capacitance and Avalanche Voltage and Current l Effective Coss specified ( See AN 1001) l VDSS 500V Rds(on) max 0.52Ω ID 6.6A TO-220 FULLPAK GDS Abs

IRFIB7N50A Features

* C R E E P A G E D IS T A N C E B E T W E E N A - B - C -D = 4.80 (.1 89) Part Marking Information TO-220 Fullpak E X A M P L E : T H IS IS A N IR F I8 4 0 G W IT H A S S E M B L Y LOT CODE E401 A IN T E R N A T IO N A L R E C T IF IE R LO GO ASSEMBLY LO T CO DE PART NUMBER IR F I8 4 0 G E 401 92

IRFIB7N50A_InternationalRectifier.pdf

IRFIB7N50A Datasheet Preview — Preview of IRFIB7N50A PDF

Datasheet Details

Part number:

IRFIB7N50A

Manufacturer:

International Rectifier

File Size:

96.02 KB

Description:

Power mosfet.
