IRFIB7N50APBF SMPS MOSFET

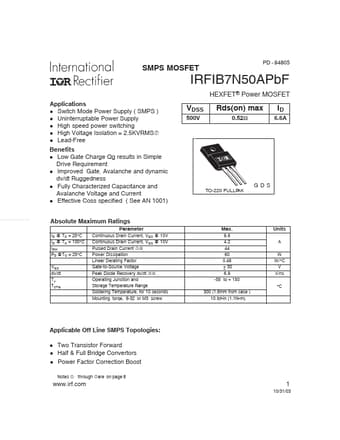

SMPS MOSFET PD - 94805 IRFIB7N50APbF HEXFET® Power MOSFET Applications Switch Mode Power Supply ( SMPS ) Uninterruptable Power Supply High speed power switching High Voltage Isolation = 2.5KVRMS Lead-Free Benefits Low Gate Charge Qg results in Simple Drive Requirement Improved Gate, Avalanche and dynamic dv/dt Ruggedness Fully Characterized Capacitance and Avalanche Voltage and Current Effective Coss specified ( See AN 1001) www.DataSheet4U.com VDSS 500V Rds(on) max 0.52Ω ID 6.6A TO-220 F.

IRFIB7N50APBF Features

* ons subject to change without notice. IR WORLD HEADQUARTERS: 233 Kansas St., El Segundo, California 90245, USA Tel: (310) 252-7105 TAC Fax: (310) 252-7903 Visit us at www.irf.com for sales contact information.10/03 8 www.irf.com
