IRFSL4620PBF, IRFS4620PBF, N-Channel HEXFET Power MOSFET

PD -96203 IRFS4620PbF IRFSL4620PbF HEXFET® Power MOSFET Applications l High Efficiency Synchronous Rectification in SMPS l Uninterruptible Power Supp.

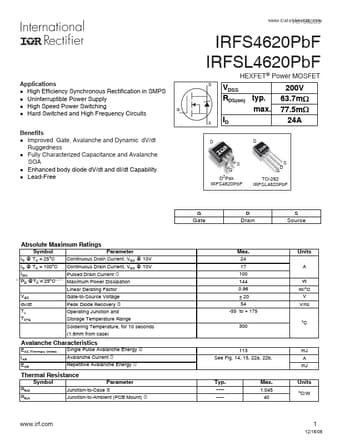

datasheet Preview Page 1 from Datasheet4u.com

IRFS4620PBF_InternationalRectifier.pdf

IRFSL4620PBF Datasheet Preview — This datasheet PDF includes multiple part numbers: IRFSL4620PBF, IRFS4620PBF. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

IRFSL4620PBF, IRFS4620PBF

Manufacturer:

International Rectifier

File Size:

396.43 KB

Description:

N-Channel HEXFET Power MOSFET

Note:

This datasheet PDF includes multiple part numbers: IRFSL4620PBF, IRFS4620PBF.
Please refer to the document for exact specifications by model.

Features

* on circuit and waveforms shown in Figures 16a, 16b. 4. PD (ave) = Average power dissipation per single avalanche pulse. 5. BV = Rated breakdown voltage (1.3 factor accounts for voltage increase during avalanche). 6. Iav = Allowable avalanche current. 7. ∆T = Allowable rise in junction temperature,

Applications

* l High Efficiency Synchronous Rectification in SMPS l Uninterruptible Power Supply l High Speed Power Switching l Hard Switched and High Frequency Circuits Benefits l Improved Gate, Avalanche and Dynamic dV/dt Ruggedness l Fully Characterized Capacitance and Avalanche SOA l Enhanced body diode dV/dt
