IRHN7150, IRHN3150 - Radiation Hardened Power MOSFET

International Rectifier

📥 Download Datasheet

IRHN7150 Datasheet Preview — This datasheet PDF includes multiple part numbers: IRHN7150, IRHN3150. Please refer to the document for exact specifications by model.

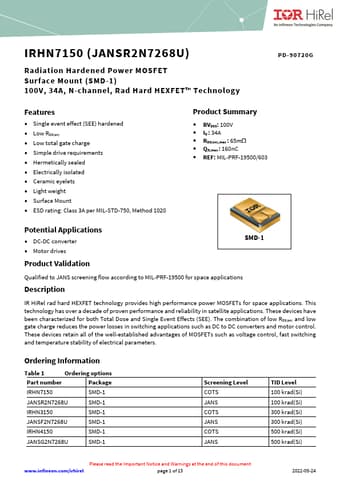

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	IRHN7150, IRHN3150
Manufacturer	International Rectifier ↗
File Size	1.56 MB
Description	Radiation Hardened Power MOSFET
Datasheet	IRHN3150_InternationalRectifier.pdf
Note	This datasheet PDF includes multiple part numbers: IRHN7150, IRHN3150. Please refer to the document for exact specifications by model.

IRHN7150 Product details

Description

IR HiRel rad hard HEXFET technology provides high performance power MOSFETs for space applications.

Features

Single event effect (SEE) hardened.
Low RDS(on).
Low total gate charge.
Simple drive requirements.
Hermetically sealed.
Electrically isolated.
Ceramic eyelets.
Light weight.
Surface Mount.
ESD rating: Class 3A per MIL-STD-750, Method 1020 Product Summary.
BVDSS: 100V.
ID : 34A.
RDS(on),max : 65m.
QG,max : 160nC.
REF: MIL-PRF-19500/603 Potential.
