IRL2203NS, IRL2203NL Datasheet - International Rectifier

IRL2203NS, IRL2203NL, Power MOSFET

PD - 94394A IRL2203NS IRL2203NL l Advanced Process Technology l Ultra Low On-Resistance l Dynamic dv/dt Rating l 175°C Operating Temperature l F.
Advanced HEXFET® Power MOSFETs from International Rectifier utilize advanced processing techniques to achieve extremely low onresistance per silicon a.

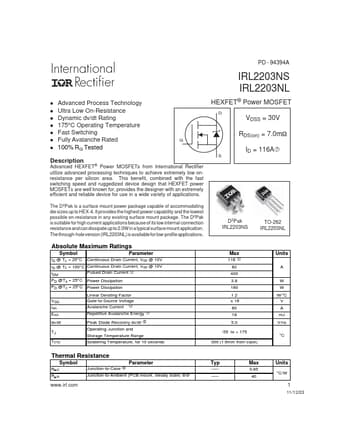

datasheet Preview Page 1 from Datasheet4u.com

IRL2203NL_InternationalRectifier.pdf

IRL2203NS Datasheet Preview — This datasheet PDF includes multiple part numbers: IRL2203NS, IRL2203NL. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

IRL2203NS, IRL2203NL

Manufacturer:

International Rectifier

File Size:

232.88 KB

Description:

Power MOSFET

Note:

This datasheet PDF includes multiple part numbers: IRL2203NS, IRL2203NL.
Please refer to the document for exact specifications by model.

Applications

* HEXFET® Power MOSFET D VDSS = 30V RDS(on) = 7.0mΩ ID = 116A S The D2Pak is a surface mount power package capable of accommodating die sizes up to HEX-4. It provides the highest power capability and the lowest possible on-resistance in any existing surface mount package. The D2Pak is suitable for
