IRL2703 Datasheet, Mosfet, INCHANGE

IRL2703 Features

  • Mosfet
  • Static drain-source on-resistance: RDS(on) ≤0.04Ω
  • Enhancement mode
  • Fast Switching Speed
  • 100% avalanche tested
  • Minimum Lot-to-Lot variations

PDF File Details

Part number:

IRL2703

Manufacturer:

INCHANGE

File Size:

247.09kb

Download:

📄 Datasheet

Description:

N-channel mosfet.

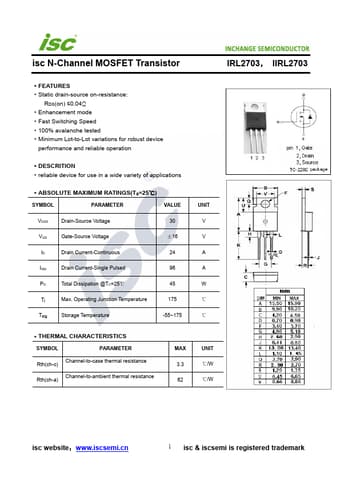

Datasheet Preview: IRL2703 📥 Download PDF (247.09kb)
Page 2 of IRL2703

IRL2703 Application

  • Applications
  • ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE VDSS Drain-Source Voltage 30 VGS Gate-Source Voltage ±16 ID
