IRL5Y024CM Datasheet - International Rectifier

IRL5Y024CM N-CHANNEL POWER MOSFET

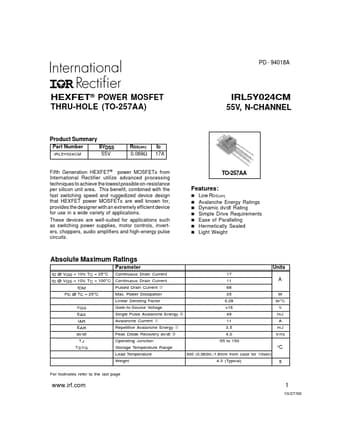

PD - 94018A HEXFET® POWER MOSFET THRU-HOLE (TO-257AA) IRL5Y024CM 55V, N-CHANNEL Product Summary Part Number IRL5Y024CM BVDSS 55V RDS(on) 0.069Ω ID 17A Fifth Generation HEXFET® power MOSFETs from International Rectifier utilize advanced processing techniques to achieve the lowest possible on-resistance per silicon unit area. This benefit, combined with the fast switching speed and ruggedized device design that HEXFET power MOSFETs are well known for, provides the designer with an extremel.

IRL5Y024CM Features

* n Low RDS(on) n Avalanche Energy Ratings n Dynamic dv/dt Rating n Simple Drive Requirements n Ease of Paralleling n Hermetically Sealed n Light Weight Absolute Maximum Ratings ID @ VGS = 10V, TC = 25°C ID @ VGS = 10V, TC = 100°C IDM PD @ TC = 25°C Parameter Continuous Drain Current Continuous Dr
