IRLHS2242, IRLHS2242PBF Datasheet - International Rectifier

IRLHS2242, IRLHS2242PBF, Power MOSFET

VDS VGS max RDS(on) max (@VGS = 4.5V) RDS(on) max (@VGS = 2.5V) Qg typ ID (@Tc(Bottom) = 25°C) -20 V ±12 V 31 mΩ 53 mΩ 9.6 nC i -8.5 A Ap.

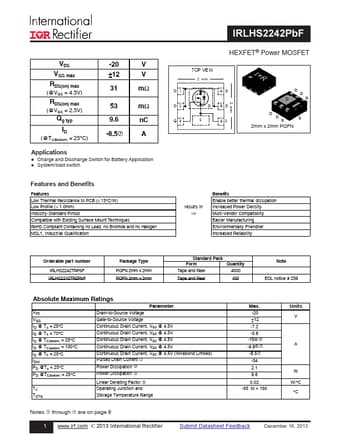

datasheet Preview Page 1 from Datasheet4u.com

IRLHS2242PBF_InternationalRectifier.pdf

IRLHS2242 Datasheet Preview — This datasheet PDF includes multiple part numbers: IRLHS2242, IRLHS2242PBF. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

IRLHS2242, IRLHS2242PBF

Manufacturer:

International Rectifier

File Size:

283.85 KB

Description:

Power MOSFET

Note:

This datasheet PDF includes multiple part numbers: IRLHS2242, IRLHS2242PBF.
Please refer to the document for exact specifications by model.

Features

* Features Low Thermal Resistance to PCB (≤ 13°C/W) Low Profile (≤ 1.0mm) Industry-Standard Pinout Compatible with Existing Surface Mount Techniques RoHS Compliant Containing no Lead, no Bromide and no Halogen MSL1, Industrial Qualification T OP VIEW IRLHS2242PbF HEXFET® Power MOSFET D1 D2 G3 6D
