IRLHS2242PBF Datasheet - International Rectifier

Power MOSFET

IRLHS2242PBF Features

* Features Low Thermal Resistance to PCB (≤ 13°C/W) Low Profile (≤ 1.0mm) Industry-Standard Pinout Compatible with Existing Surface Mount Techniques RoHS Compliant Containing no Lead, no Bromide and no Halogen MSL1, Consumer Qualification Benefits Enable better thermal dissipation results in Increased

IRLHS2242PBF Datasheet (283.85 KB)

Preview of IRLHS2242PBF PDF

Datasheet Details

Part number:

IRLHS2242PBF

Manufacturer:

International Rectifier

File Size:

283.85 KB

Description:

Power mosfet.

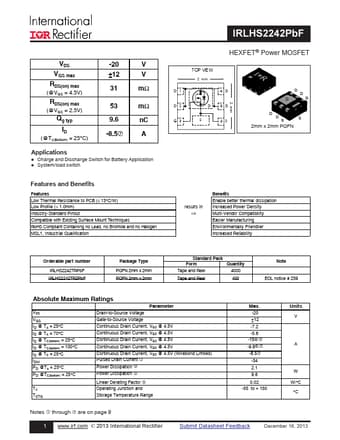

PD - 96360 IRLHS2242PbF HEXFET® Power MOSFET VDS VGS max RDS(on) max (@VGS = 4.5V) -20 ±12 31 53 9.6 -8.5 V V mΩ mΩ nC A D 1 T OP VIEW 6 D D D .
