IRLI630A - Advanced Power MOSFET

Name: IRLI630A
SKU: IRLI630A-586025

International Rectifier

The IRLI630A by International Rectifier is a Advanced Power MOSFET. Below is the official datasheet preview.

Datasheet Details

Part number	IRLI630A
Manufacturer	International Rectifier
File Size	252.33 KB
Description	Advanced Power MOSFET
Datasheet	IRLI630A_InternationalRectifier.pdf

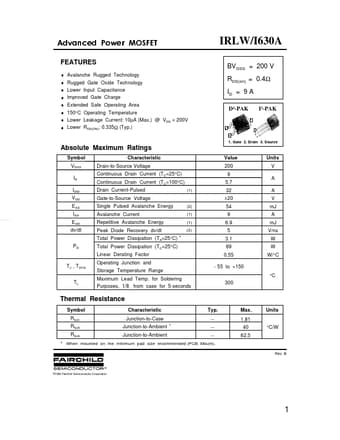

Additional preview pages of the IRLI630A datasheet.

Avalanche Rugged Technology.
Rugged Gate Oxide Technology.
Lower Input Capacitance.
Improved Gate Charge.
Extended Safe Operating Area.
150° C Operating Temperature.
Lower Leakage Current: 10µA (Max. ) @ VDS = 200V.
Lower RDS(ON): 0.335Ω (Typ. ) IRLW/I630A BVDSS = 200 V RDS(on) = 0.4Ω ID = 9 A D2-PAK 2 I2-PAK 1 1 3 2 3 1. Gate 2. Drain 3. Source Absolute Maximum Ratings Symbol VDSS ID IDM VGS EAS IAR www. DataSheet4U. com.
