IRLR2905Z - POWER MOSFET

IRLR2905Z Description

PD - 95774B IRLR2905ZPbF IRLU2905ZPbF .
This HEXFET® Power MOSFET utilizes the latest processing techniques to achieve extremely low onresistance per silicon area.

IRLR2905Z Applications

* HEXFET® Power MOSFET D VDSS = 55V RDS(on) = 13.5mΩ ID = 42A S D-Pak I-Pak IRLR2905ZPbF IRLU2905ZPbF Absolute Maximum Ratings Parameter ID @ TC = 25°C Continuous Drain Current, VGS @ 10V (Silicon Limited) ID @ TC = 100°C Continuous Drain Current, VGS @ 10V ™ ID @ TC = 25°C Continuous Drain

📥 Download Datasheet

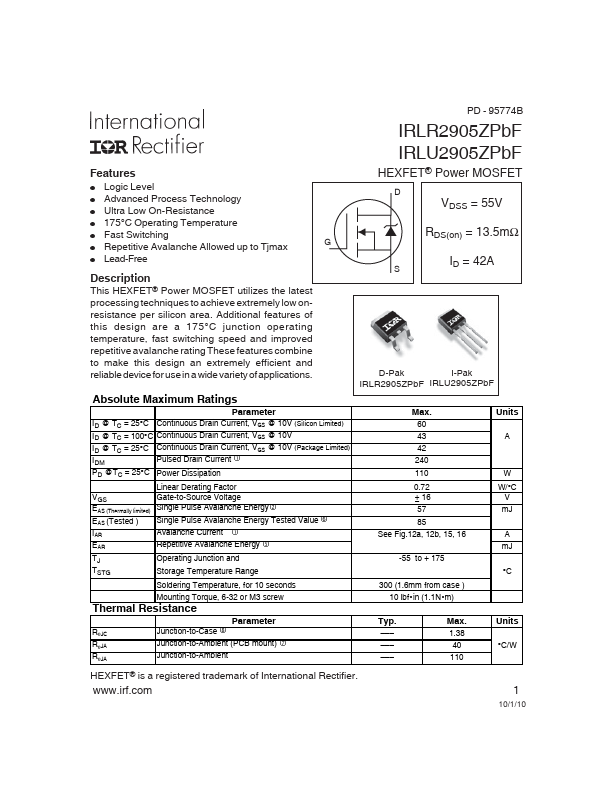

Preview of IRLR2905Z PDF

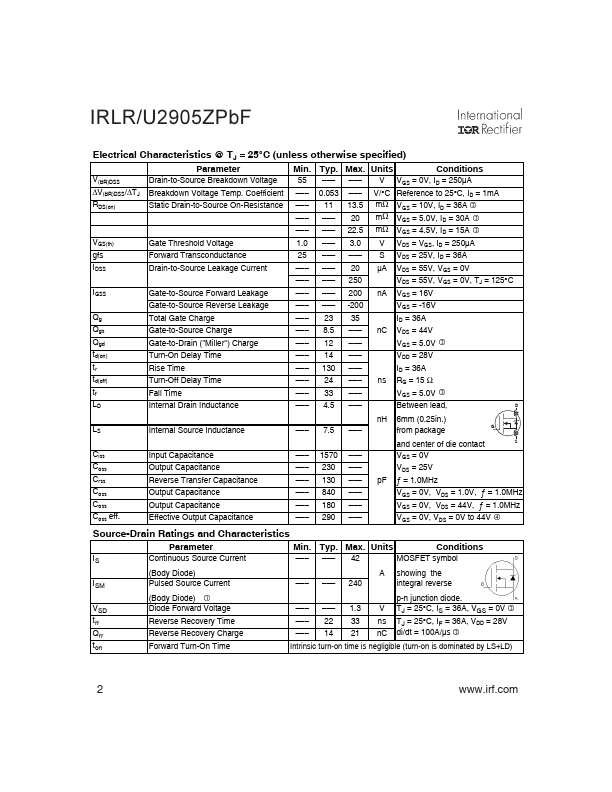

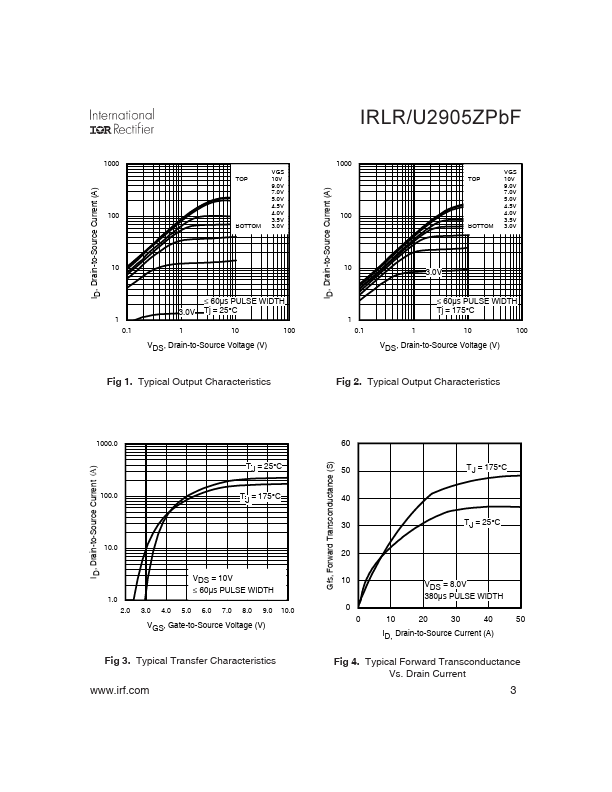

datasheet Preview Page 2 datasheet Preview Page 3
