IRLR2905ZTRPBF - N-Channel MOSFET

IRLR2905ZTRPBF Description

IRLR2905ZTRPBF N-Channel 60 V (D-S) MOSFET PRODUCT SUMMARY VDS (V) 60 RDS(on) () 0.010 at VGS = 10 V 0.013 at VGS = 4.5 V ID (A)a 58 56 .

IRLR2905ZTRPBF Features

* 175 °C Junction Temperature
* TrenchFET® Power MOSFET
* Material categorization: D TO-252 www. VBsemi. com G GD S S N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS (TC = 25 °C, unless otherwise noted) Parameter Symbol Limit Unit Gate-Source Voltage VGS ± 20 V Continu

📥 Download Datasheet

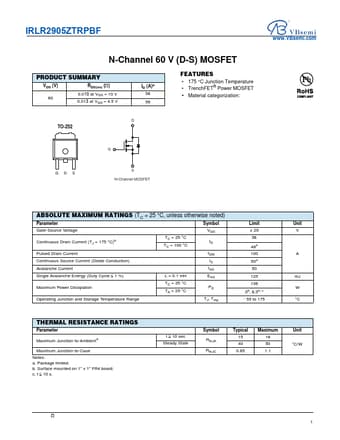

Preview of IRLR2905ZTRPBF PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IRLR2905ZTRPBF
Manufacturer
VBsemi
File Size
454.86 KB
Datasheet
IRLR2905ZTRPBF-VBsemi.pdf
Description
N-Channel MOSFET
