IRL510A, N-Channel MOSFET

IRL510A-VB IRL510A-VB Datasheet N-Channel 100-V (D-S) MOSFET www.VBsemi.com PRODUCT SUMMARY V(BR)DSS (V) RDS(on) (Ω) 100 0.127at VGS = 10 V ID.

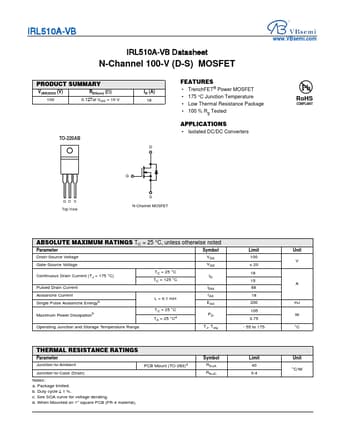

datasheet Preview Page 1 from Datasheet4u.com

IRL510A-VBsemi.pdf

IRL510A Datasheet Preview — Preview of IRL510A PDF

Datasheet Details

Part number:

IRL510A

Manufacturer:

VBsemi

File Size:

205.36 KB

Description:

N-Channel MOSFET

Features

* TrenchFET® Power MOSFET
* 175 °C Junction Temperature
* Low Thermal Resistance Package

Applications

* Isolated DC/DC Converters RoHS COMPLIANT GD S Top View G S N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS TC = 25 °C, unless otherwise noted Parameter Symbol Drain-Source Voltage VDS Gate-Source Voltage VGS Continuous Drain Current (TJ = 175 °C) TC = 25 °C TC = 125 °C ID Pulsed Dr
