IRLL014NTRPBF - N-Channel MOSFET

IRLL014NTRPBF Description

IRLL014NTRPBF N-Channel 60-V (D-S) MOSFET www.VBsemi.tw PRODUCT SUMMARY VDS (V) RDS(on) (Ω) 0.076 at VGS = 10 V 60 0.085 at VGS = 4.5 V ID (A)a.

IRLL014NTRPBF Features

* Halogen-free

IRLL014NTRPBF Applications

* Load Switches for Portable Devices RoHS COMPLIANT SOT-223-3 D S D G D G S N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS TA = 25 °C, unless otherwise noted Parameter Symbol Limit Unit Drain-Source Voltage Gate-Source Voltage VDS 60 V VGS ± 20 TC = 25 °C 4.5 Continuous Drain Cur

📥 Download Datasheet

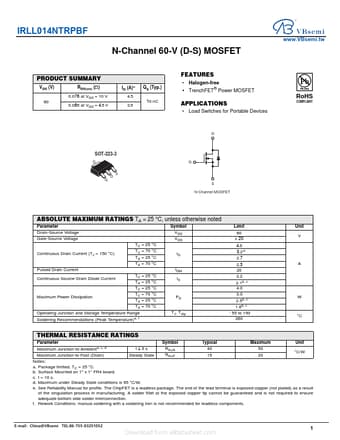

Preview of IRLL014NTRPBF PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IRLL014NTRPBF
Manufacturer
VBsemi
File Size
1.63 MB
Datasheet
IRLL014NTRPBF-VBsemi.pdf
Description
N-Channel MOSFET
