IRL510 - N-Channel 100V MOSFET

IRL510 Description

IRL510-VB IRL510-VB Datasheet N-Channel 100-V (D-S) MOSFET www.VBsemi.com PRODUCT SUMMARY V(BR)DSS (V) RDS(on) (Ω) 100 0.127at VGS = 10 V ID (.

IRL510 Features

* TrenchFET® Power MOSFET
* 175 °C Junction Temperature
* Low Thermal Resistance Package

IRL510 Applications

* Isolated DC/DC Converters RoHS COMPLIANT GD S Top View G S N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS TC = 25 °C, unless otherwise noted Parameter Symbol Drain-Source Voltage VDS Gate-Source Voltage VGS Continuous Drain Current (TJ = 175 °C) TC = 25 °C TC = 125 °C ID Pulsed Dr

📥 Download Datasheet

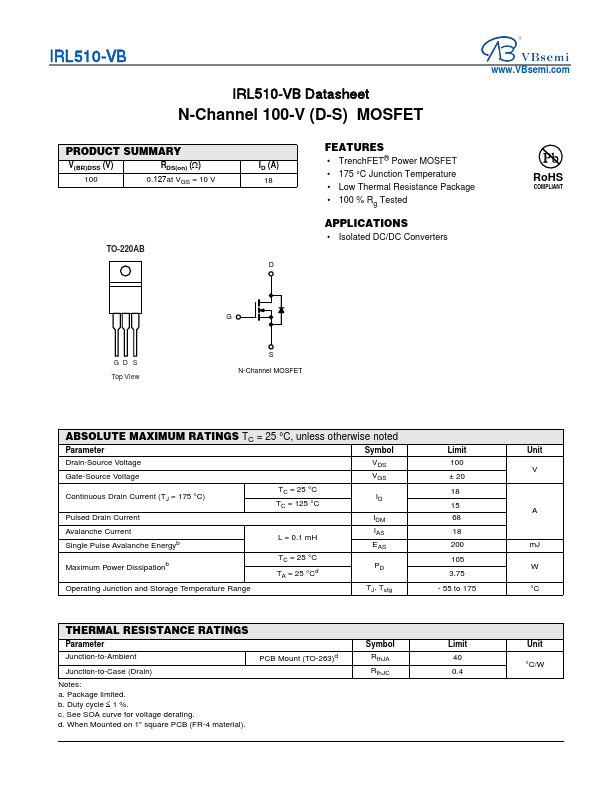

Preview of IRL510 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IRL510
Manufacturer
VBsemi
File Size
205.33 KB
Datasheet
IRL510-VBsemi.pdf
Description
N-Channel 100V MOSFET
