IRS2001PBF

HIGH AND LOW SIDE DRIVER

IRS2001PBF Features

* Floating channel designed for bootstrap operation

* Fully operational to +200 V

* Tolerant to negative transient voltage, dV/dt immune

* Gate drive supply range from 10 V to 20 V

* Undervoltage lockout

* 3.3 V, 5 V, and 15 V logic input compatible

IRS2001PBF General Description

The IRS2001 is a high voltage, high speed power MOSFET and IGBT driver with independent high and low side referenced output channels. Proprietary HVIC and latch immune CMOS technologies enable ruggedized monolithic construction. The logic input is compatible with standard CMOS or LSTTL output, down .

IRS2001PBF Datasheet (216.63 KB)

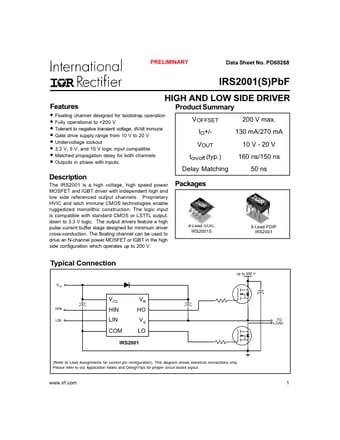

Preview of IRS2001PBF PDF

Datasheet Details

Part number:

IRS2001PBF

Manufacturer:

International Rectifier

File Size:

216.63 KB

Description:

High and low side driver.
