IRS2106

HIGH AND LOW SIDE DRIVER

IRS2106 Features

* Packages 8-Lead PDIP 14-Lead PDIP 14-Lead PDIP 8-Lead SOIC 14-Lead SOIC Description The IRS2106/IRS21064 are high Crossvoltage, high speed power MOSFET ton/toff Deadtime Input conduction Part Ground Pins and IGBT drivers with independent (ns) logic prevention (ns) logic high- and low-side refe

IRS2106 General Description

The IRS2106/IRS21064 are high Crossvoltage, high speed power MOSFET ton/toff Deadtime Input conduction Part Ground Pins and IGBT drivers with independent (ns) logic prevention (ns) logic high- and low-side referenced output 2106/2301 COM HIN/LIN no none 220/200 channels. Proprietary HVIC and 21064 .

IRS2106 Datasheet (610.40 KB)

Preview of IRS2106 PDF

Datasheet Details

Part number:

IRS2106

Manufacturer:

International Rectifier

File Size:

610.40 KB

Description:

High and low side driver.

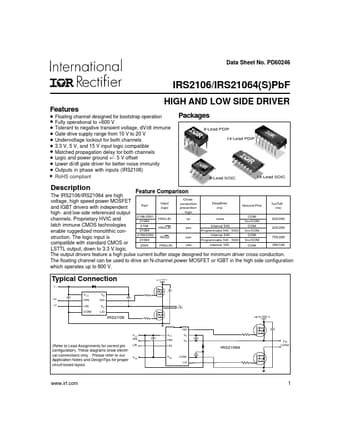

Data Sheet No. PD60246 IRS2106/IRS21064(S)PbF HIGH AND LOW SIDE DRIVER

* Floating channel designed for bootstrap operation

* Fully op.
