IRS210614S - HIGH AND LOW SIDE DRIVER

International Rectifier

📥 Download Datasheet

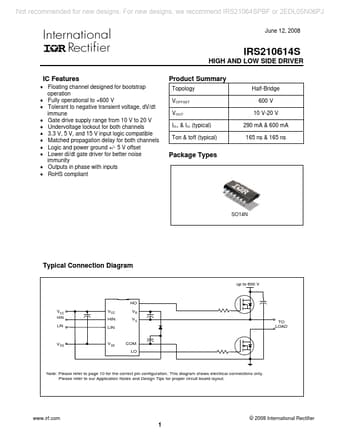

IRS210614S Datasheet Preview — Preview of IRS210614S PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	IRS210614S
Manufacturer	International Rectifier
File Size	690.57 KB
Description	HIGH AND LOW SIDE DRIVER
Datasheet	IRS210614S-InternationalRectifier.pdf

IRS210614S Product details

Features

Floating channel designed for bootstrap operation.
Fully operational to +600 V.
Tolerant to negative transient voltage, dV/dt immune.
Gate drive supply range from 10 V to 20 V.
Undervoltage lockout for both channels.
3.3 V, 5 V, and 15 V input logic compatible.
Matched propagation delay for both channels.
Logic and power ground +/- 5 V offset.
Lower di/dt gate driver for better noise immunity.
Outputs in p.
