IRS2106S - (IRS2106(4)D(S)PbF) High and Low Side Driver

International Rectifier

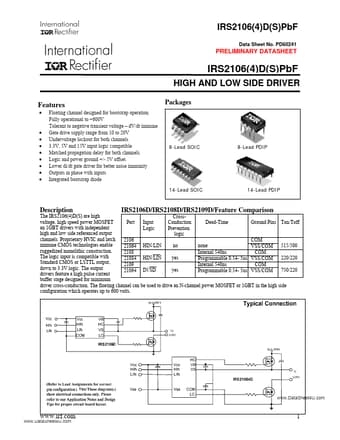

IRS2106S Datasheet Preview — Preview of IRS2106S PDF

Datasheet Details

Part number	IRS2106S
Manufacturer	International Rectifier
File Size	348.49 KB
Description	(IRS2106(4)D(S)PbF) High and Low Side Driver
Datasheet	IRS2106S_InternationalRectifier.pdf

IRS2106S Product details

Description

IRS2106D/IRS2108D/IRS2109D/Feature Comparison The IRS2106(4)D(S) are high Crossvoltage, high speed power MOSFET Part Input Conduction Dead-Time Ground Pins Ton/Toff an 1GBT drivers with independent Logic Prevention high and low side referenced output logic channels.Proprietary HVIC and latch 2106 COM immune CMOS technologies enable 515/500 no none VSS/COM 21064 HIN/LIN ruggedized monolithic construction.___ 2108 Internal 540ns COM The logic input is compatible with 220/220 yes Programmable 0

Features

Floating channel designed for bootstrap operation Fully operational to +600V Tolerant to negative transient voltage.
dV/dt immune Gate drive supply range from 10 to 20V Undervoltage lockout for both channels 3.3V, 5V and 15V input logic compatible Matched propagation delay for both channels Logic and power ground +/- 5V offset. Lower di/dt gate driver for better noise immunity Outputs in phase with.
