IRS2112-1SPBF, IRS2112-1PBF HIGH AND LOW SIDE DRIVER

International Rectifier

Description

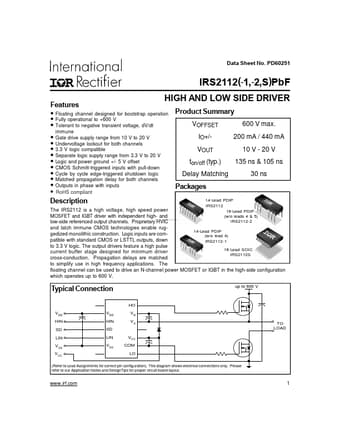

Data Sheet No.PD60251 IRS2112(-1,-2,S)PbF .
The IRS2112 is a high voltage, high speed power MOSFET and IGBT driver with independent high- and www.

📥 Download Datasheet

IRS2112-1SPBF Datasheet Preview — This datasheet PDF includes multiple part numbers: IRS2112-1SPBF, IRS2112-1PBF. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: IRS2112-1SPBF, IRS2112-1PBF
Manufacturer: International Rectifier
File Size: 615.06 KB
Datasheet: IRS2112-1PBF_InternationalRectifier.pdf
Description: HIGH AND LOW SIDE DRIVER
Note: This datasheet PDF includes multiple part numbers: IRS2112-1SPBF, IRS2112-1PBF.
Please refer to the document for exact specifications by model.

Features

* HIGH AND LOW SIDE DRIVER Product Summary VOFFSET IO+/VOUT ton/off (typ. ) Delay Matching 600 V max. 200 mA / 440 mA 10 V - 20 V 135 ns & 105 ns 30 ns Floating channel de

Applications

* The floating channel can be used to drive an N-channel power MOSFET or IGBT in the high-side configuration which operates up to 600 V. Typical Connection HO V DD HIN SD LIN V SS V CC VDD HIN SD LIN VSS VCC COM LO VB VS up to 600 V TO LOAD (Refer to Lead Assignments for correct pin configuration
