IRS21952SPBF

HIGH SIDE & DUAL LOW SIDE DRIVER IC

IRS21952SPBF Features

* 2 low side output channels sharing common ground

* 1 high side output channel

* CMOS Schmitt trigger inputs with pull down resistor

* Under voltage lockout on all channels

* 5 V compatible logic level Inputs

* Immune to

* Vs spike and tolerant

IRS21952SPBF General Description

The IRS21952 contains 2 low side outputs sharing common ground and 1 high side output. Low side drivers can tolerate up to -600 V below input signal (VSS: input supply return). High side driver can tolerate up to 600 V above low side ground (COM: low side supply return). The IRS21952 has better pro.

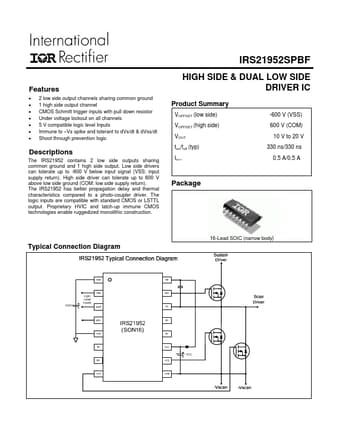

IRS21952SPBF Datasheet (192.42 KB)

Preview of IRS21952SPBF PDF

Datasheet Details

Part number:

IRS21952SPBF

Manufacturer:

International Rectifier

File Size:

192.42 KB

Description:

High side & dual low side driver ic.
