IRS2101SPBF

HIGH AND LOW SIDE DRIVER

IRS2101SPBF Features

* HIGH AND LOW SIDE DRIVER Product Summary VOFFSET IO+/VOUT ton/off (typ.) Delay Matching 600 V max. 130 mA/270 mA 10 V - 20 V 160 ns/150 ns 50 ns Description The IRS2101 is a high voltage, high speed power MOSFET and IGBT driver with independent high-side and low-side referenced output channels. Pr

IRS2101SPBF General Description

The IRS2101 is a high voltage, high speed power MOSFET and IGBT driver with independent high-side and low-side referenced output channels. Proprietary HVIC and latch immune CMOS technologies enable ruggedized monolithic construction. The logic input is compatible with standard CMOS or LSTTL output, .

IRS2101SPBF Datasheet (0.97 MB)

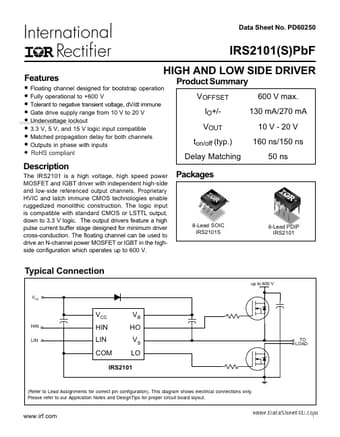

Preview of IRS2101SPBF PDF

Datasheet Details

Part number:

IRS2101SPBF

Manufacturer:

International Rectifier

File Size:

0.97 MB

Description:

High and low side driver.
Data Sheet No. PD60250 IRS2101(S)PbF

* Floating channel designed for bootstrap operation

* Fully operational to +600 V

* Tole.
