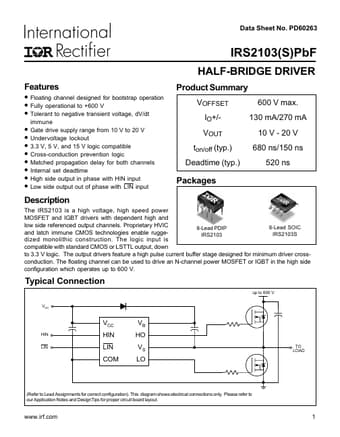

IRS2103PBF Datasheet Preview — Preview of IRS2103PBF PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: IRS2103PBF
Manufacturer: International Rectifier
File Size: 1.39 MB
Datasheet: IRS2103PBF_InternationalRectifier.pdf
Description: HALF-BRIDGE DRIVER

IRS2103PBF Product details

Description

The IRS2103 is a high voltage, high speed power MOSFET and IGBT drivers with dependent high and low side referenced output channels.

Features

Floating channel designed for bootstrap operation.
Fully operational to +600 V.
Tolerant to negative transient voltage, dV/dt.
immune Gate drive supply range from 10 V to 20 V Undervoltage lockout 3.3 V, 5 V, and 15 V logic compatible Cross-conduction prevention logic Matched propagation delay for both channels Internal set deadtime High side output in phase with HIN input Low side output o.
