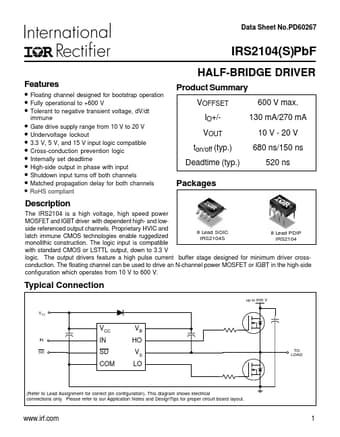

IRS2104PBF Datasheet Preview — Preview of IRS2104PBF PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: IRS2104PBF
Manufacturer: International Rectifier
File Size: 269.43 KB
Datasheet: IRS2104PBF_InternationalRectifier.pdf
Description: HALF-BRIDGE DRIVER

IRS2104PBF Product details

Description

The IRS2104 is a high voltage, high speed power

Features

Floating channel designed for bootstrap operation.
Fully operational to +600 V.
Tolerant to negative transient voltage, dV/dt immune.
Gate drive supply range from 10 V to 20 V.
Undervoltage lockout.
3.3 V, 5 V, and 15 V input logic compatible.
Cross-conduction prevention logic.
Internally set deadtime.
High-side output in phase with input.
Shutdown input turns off both channels.
Matched propagatio.
