IRS2104SPBF, IRS2104PBF Datasheet - International Rectifier

IRS2104SPBF HALF-BRIDGE DRIVER

The IRS2104 is a high voltage, high speed power MOSFET and IGBT driver with dependent high- and low- side referenced output channels. Proprietary HVIC and latch immune CMOS technologies enable ruggedized monolithic construction. The logic input is compatible 8 Lead SOIC IRS2104S 8 Lead PDIP IRS.

IRS2104SPBF Features

* Floating channel designed for bootstrap operation

* Fully operational to +600 V

* Tolerant to negative transient voltage, dV/dt immune

* Gate drive supply range from 10 V to 20 V

* Undervoltage lockout

* 3.3 V, 5 V, and 15 V input logic compatible

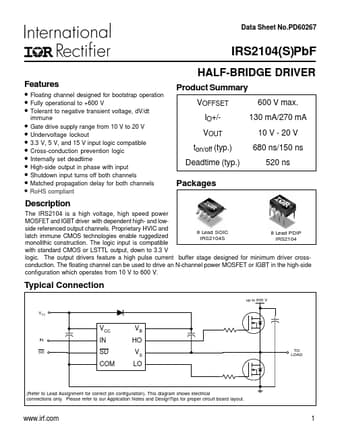

IRS2104PBF_InternationalRectifier.pdf

IRS2104SPBF Datasheet Preview — This datasheet PDF includes multiple part numbers: IRS2104SPBF, IRS2104PBF. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

IRS2104SPBF, IRS2104PBF

Manufacturer:

International Rectifier

File Size:

269.43 KB

Description:

Half-bridge driver.

Note:

This datasheet PDF includes multiple part numbers: IRS2104SPBF, IRS2104PBF.
Please refer to the document for exact specifications by model.
