IRS2104S

HALF-BRIDGE DRIVER

IRS2104S Features

* Floating channel designed for bootstrap operation

* Fully operational to +600 V

* Tolerant to negative transient voltage, dV/dt immune

* Gate drive supply range from 10 V to 20 V

* Undervoltage lockout

* 3.3 V, 5 V, and 15 V input logic compatible

IRS2104S General Description

The IRS2104 is a high voltage, high speed power MOSFET and IGBT driver with dependent high- and low- side referenced output channels. Proprietary HVIC and latch immune CMOS technologies enable ruggedized monolithic construction. The logic input is compatible 8 Lead SOIC IRS2104S 8 Lead PDIP IRS.

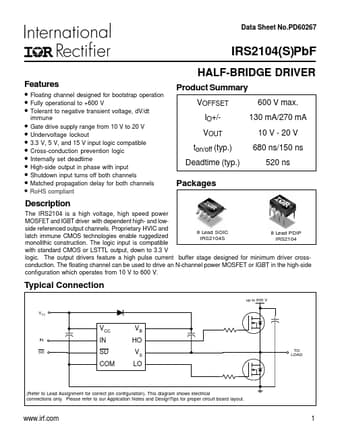

IRS2104S Datasheet (269.43 KB)

Preview of IRS2104S PDF

Datasheet Details

Part number:

IRS2104S

Manufacturer:

International Rectifier

File Size:

269.43 KB

Description:

Half-bridge driver.
