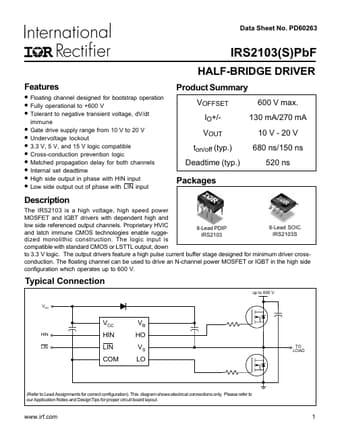

IRS2103 HALF-BRIDGE DRIVER

The IRS2103 is a high voltage, high speed power MOSFET and IGBT drivers with dependent high and low side referenced output channels. Proprietary HVIC and latch immune CMOS technologies enable ruggedized monolithic construction. The logic input is 8-Lead PDIP IRS2103 8-Lead SOIC IRS2103S compat.

IRS2103 Features

* Floating channel designed for bootstrap operation

* Fully operational to +600 V

* Tolerant to negative transient voltage, dV/dt immune

* Gate drive supply range from 10 V to 20 V

* Undervoltage lockout

* 3.3 V, 5 V, and 15 V logic compatible

IRS2103PBF_InternationalRectifier.pdf

This datasheet PDF includes multiple part numbers: IRS2103, IRS2103PBF. Please refer to the document for exact specifications by model.
