IRS2103SPBF HALF-BRIDGE DRIVER

The IRS2103 is a high voltage, high speed power MOSFET and IGBT drivers with dependent high and low side referenced output channels. Proprietary HVIC 8-Lead SOIC 8-Lead PDIP and latch immune CMOS technologies enable ruggeIRS2103S IRS2103 dized monolithic construction. The logic input is compatible w.

IRS2103SPBF Features

* Floating channel designed for bootstrap operation

* Fully operational to +600 V

* Tolerant to negative transient voltage, dV/dt

* immune Gate drive supply range from 10 V to 20 V Undervoltage lock

IRS2103PBF_InternationalRectifier.pdf

This datasheet PDF includes multiple part numbers: IRS2103SPBF, IRS2103PBF. Please refer to the document for exact specifications by model.

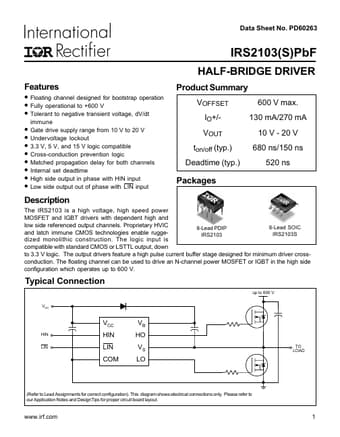

IRS2103SPBF Datasheet Preview Page 2 IRS2103SPBF Datasheet Preview Page 3

Datasheet Details

Part number:

IRS2103SPBF, IRS2103PBF

Manufacturer:

International Rectifier

File Size:

1.39 MB

Description:

Half-bridge driver.

Note:

This datasheet PDF includes multiple part numbers: IRS2103SPBF, IRS2103PBF.
Please refer to the document for exact specifications by model.
